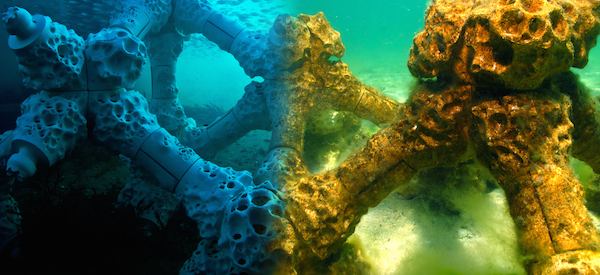

[Image above] A MARS unit during initial installation underwater (left) and the same unit three months later (right). Credit: Alex Goad

Designer Alex Goad is on a marine invertebrate life-saving mission.

Goad has designed and fabricated ceramic Modular Artificial Reef Structure (MARS) that can help damaged coral reefs rebuild, repair, and rebound.

Like some ceramics, coral are incredibly brittle and fragile. Human activities—such as dynamite fishing and development projects (like this)—and their effects—such as global warming and pollution—strain and damage these incredibly valuable and diverse ecosystems.

According to a NASA Earth Observatory article from 2001, human activities over the past 50 years have decimated an estimated 27% of monitored reefs, with another 32% at risk over the next few decades.

Goad’s website states, “Unprecedented population growth is putting increased pressure on our oceans, not only because of climate change and pollution, but also because of destructive fishing practices, increased water runoff and dredging. Our irreplaceable coral reefs are some of the most biodiverse and uniquely fragile ecosystems on the planet, and consequently suffer the quickest and most drastically from this human expansion.”

To add insult to injury, coral take a really long time to grow. According to the National Oceanic and Atmospheric Administration, some coral, such as massive corals, grown at just 0.3–2 cm per year. Other types, like branching corals, can grow up to 10 cm per year, but even that growth is a snail’s pace.

Starting from larvae, it can take up to 10,000 years to form a coral reef, and 100,000–30,000,000 years to fully form larger coral reef structures like barrier reefs and atolls.

And the Great Barrier Reef can be seen from space.

So coral repair is slow—but artificial structures, which the invertebrates can infiltrate and grow on, can help corals bounce back quicker. Those structures and efforts need to be simple, efficient, and affordable for implementation, especially in the remote island communities where the artificial structures are often needed.

And that’s exactly where Goad’s MARS project comes in.

0407ctt MARS 7 lo res

MARS can be incorporated into existing reefs to rebuild damaged areas. Credit: Alex Goad

“What may have taken 100 years to restore naturally can be reduced to an estimated 8–15 years using the MARS system,” Goad says in a Dezeen article.

The project, originally designed during Goad’s industrial design studies at Monash University (Melbourne, Australia), is now being developed at Reef Design Lab, where Goad is a cofounder with marine biologist David Lennon.

To provide coral with an appropriate and safe substrate material, Goad turned to ceramics to provide ample surface area and texture for corals and other marine life to inhabit and find refuge.

“The ceramic used is simply food-grade earthenware ceramic fired at 1,100 °C, and we also use food-grade stoneware ceramic fired at 1,200 °C,” Goad writes in an email. “Ceramic is known for its excellent ability to encourage sensitive marine organism colonization and provides a porous surface for microorganisms to flourish.”

0407ctt MARS 11 lo res

Marine life seem to be happy with their new ceramic homes. Credit: Alex Goad

“Ceramic has been used for years to propagate juvenile corals in aquariums, because its inert surface provides an ideal substrate material in lieu of carbonate rock,” Goad continues. “We tested the growth rates between ceramic and various other materials and found that ceramic always had better results.”

Goad constructs individual units from eight slip-cast organic-looking ceramic arms. The ceramic shells are then filled with marine-grade concrete and composite rebar for added strength.

And the issue of implementing these structures, Goad says, is no issue at all.

“MARS solves these issues by creating a modular design that can be deployed from small boats and implemented by divers,” he writes in the email. “This completely eliminates the need for heavy-duty machinery, drastically reducing costs.”

0407ctt MARS 4 lo res

MARS can be installed by divers. Credit: Alex Goad

And because the system is modular, individual configurations can be easily tailored for specific projects and unique locations by snapping units together like Legos.

The team has already tested several of their structures in marine habitats. According to Goad’s website, MARS systems are colonized by shellfish, shrimp, and small fish after just three months underwater. See more about the structures in this Vimeo video.

Reef Design Lab is also developing several other ceramic reef unit designs to provide new marine habitats, including one that is 3-D printed.

Let’s hope they can help preserve some of this absolute beauty.

0407ctt MARS 1 lo res

Credit: Alex Goad

0407ctt MARS 5 lo res

Credit: Alex Goad

0407ctt MARS 3 lo res

Credit: Alex Goad

0407ctt MARS 2 lo res

Credit: Alex Goad
